Ashborne 4′ Picket Fence Master CAD
Material List – 4×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 72″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| Metal | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 45.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 44.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 43.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 42.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.625″ |
| Pickets | 1 | 0.875″ x 1.5″ x 39.375″ |
| Picket Caps | 21 | 0.875″ x 1.5″ |
Material List – 4×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 95.75″ |
| Bottom Rail | 1 | 2″ x 3.5″ 95.75″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 45.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 44.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 43.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 42.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 39″ |
| Pickets | 2 | 0.875″ x 1.5″ x 38.875″ |
| Picket Caps | 28 | 0.875″ x 1.5″ |

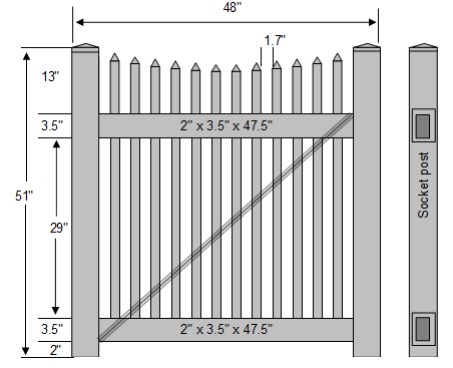

Material List – 4’x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 51″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 47″ |
| Pickets | 2 | 0.875″ x 1.5″ x 45.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 44.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 43.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 42.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.25″ |
| Picket Caps | 12 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

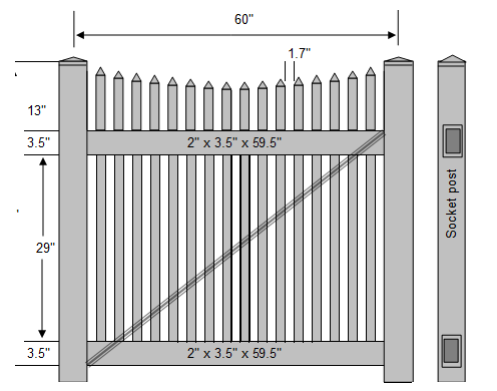

Material List – 4′ x 60″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 51″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 59″ |
| Pickets | 2 | 0.875″ x 1.5″ x 45.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 44.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 43.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 42.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 41.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 40.25″ |
| Picket Caps | 16 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
