Edith 7′ Privacy Fence Master CAD

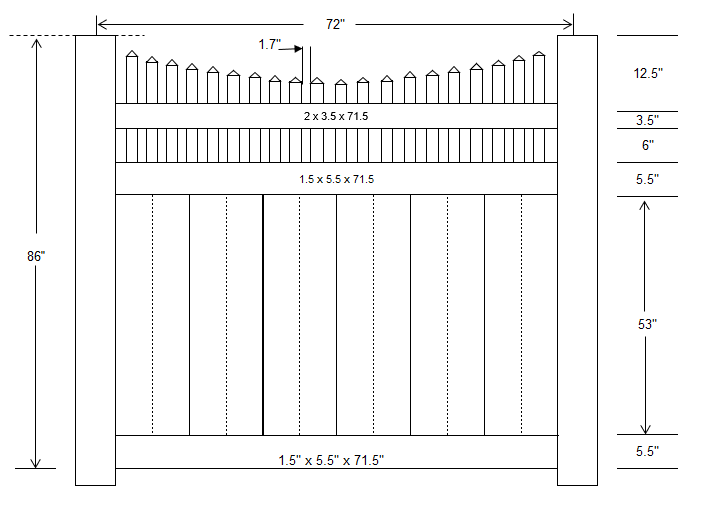

Material List – 7×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 71.5″ |
| U-Channel | 2 | 1.25″ x 1.5″ x 53″ |
| Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18″ |
| Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
| Spindles | 2 | 0.875″ x 1.5″ x 16.5″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.5″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.25″ |
| Picket Caps | 20 | 0.875″ x 1.5″ |
| T&G Pickets | 6 | 0.875″ x 11.3″ x 56.5″ |
Material List – 7×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 95.5″ |
| U-Channel | 2 | 1.25″ x 1.5″ x 53″ |
| Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 20.375″ |
| Spindles | 2 | 0.875″ x 1.5″ x 20″ |
| Spindles | 2 | 0.875″ x 1.5″ x 19.625″ |
| Spindles | 2 | 0.875″ x 1.5″ x 19″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18.375″ |
| Spindles | 2 | 0.875″ x 1.5″ x 17.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
| Spindles | 2 | 0.875″ x 1.5″ x 16.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 16.25″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.5″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.375″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.25″ |
| Picket Caps | 28 | 0.875″ x 1.5″ |
| T&G Pickets | 8 | 0.875″ x 11.3″ x 56.5″ |
Material List – 7′ x 42.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 88″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 42″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 42″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 42″ |
| Metal | 1 | 1.25″ x 1.75″ x 41.5″ |
| U-Channel | 2 | 1.25″ x 1.5″ x 53″ |
| Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18″ |
| Spindles | 1 | 0.875″ x 1.5″ x 17.875″ |
| Cross Brace | 1 | Cross Brace |
| T&G Pickets | 3 | 0.875″ x 11.3″ x 56.5″ |
| Picket Caps | 11 | 0.875″ x 1.5″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

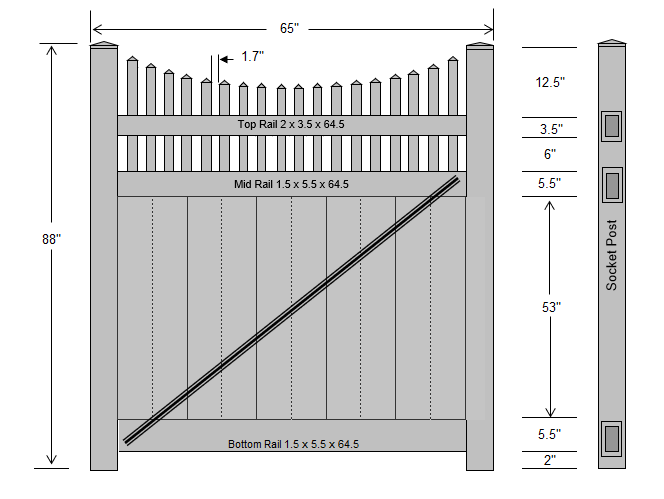

Material List – 7′ x 65″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 88″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 64.5″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 64.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 64.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 64″ |
| U-Channel | 2 | 1.25″ x 1.5″ x 53″ |
| Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
| Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 18″ |
| Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
| Spindles | 2 | 0.875″ x 1.5″ x 16.5″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
| Spindles | 2 | 0.875″ x 1.5″ x 15.625″ |
| Cross Brace | 1 | Cross Brace |
| T&G Pickets | 5 | 0.875″ x 11.3″ x 56.5″ |
| Picket Caps | 18 | 0.875″ x 1.5″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
