Milton 4′ Semi-Privacy Fence Master CAD
Material List – 4×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 71.5″ |
| Mid Rail | 1 | 2 x 3.5″ x 71.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 71.5″ |
| Picket | 17 | 0.875″ x 3″ x 40.5″ |
Material List – 4×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 95.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 95.5″ |
| Picket | 24 | 0.875″ x 3″ x 40.5″ |
Material List – 4′ x 46″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 45.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 45.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 45.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 45″ |
| Pickets | 10 | 0.875″ x 3″ x 40.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

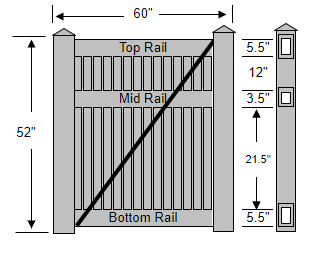

Material List – 4′ x 60″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 59.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 59.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 59″ |
| Pickets | 14 | 0.875″ x 3″ x 40.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 4′ x 72″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Metal | 1 | 1.25″ x 1.75″ x 71″ |
| Pickets | 17 | 0.875″ x 3″ x 40.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
