Newport 6′ Privacy Fence Master CAD
Material List – 6×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 1.5″ x 5.5″ x 71.5″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Metal | 3 | 1.25″ x 1.75″ x 71.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 27.75″ |
| T&G Pickets | 22 | 0.875″ x 6″ x 31″ |
Material List – 6×8 Panel

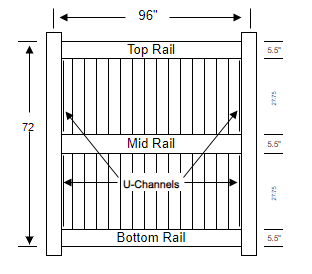

| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 1.5″ x 5.5″ x 95.75″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 95.75″ |
| Metal | 3 | 1.25″ x 1.75″ x 95.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 27.75″ |
| T&G Pickets | 30 | 0.875″ x 6″ x 31″ |
Material List – 6′ x 44.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 76″ |
| Post Cap | 2 | 4″ x 4″ |
| Top & Bottom Rail | 2 | 1.5″ x 5.5″ x 44″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 44″ |
| Metal | 3 | 1.25″ x 1.75″ x 43.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 27.75″ |
| Cross Brace | 1 | Cross Brace |
| T&G Pickets | 12 | 0.875″ x 6″ x 31″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 6’x 62.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 76″ |
| Post Cap | 2 | 4″ x 4″ |
| Top & Bottom Rail | 2 | 1.5″ x 5.5″ x 62″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 62″ |
| Metal | 3 | 1.25″ x 1.75″ x 61.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 27.75″ |
| Cross Brace | 1 | Cross Brace |
| T&G Pickets | 18 | 0.875″ x 6″ x 31″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 6’x 68.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 76″ |
| Post Cap | 2 | 4″ x 4″ |
| Top & Bottom Rails | 2 | 1.5″ x 5.5″ x 68″ |
| Mid Rail | 1 | 1.5″ x 5.5″ x 68″ |
| Metal | 3 | 1.25″ x 1.75″ x 67.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 27.75″ |
| Cross Brace | 1 | Cross Brace |
| T&G Pickets | 20 | 0.875″ x 6″ x 31″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
