Rochdale 3′ Picket Fence Master CAD
Material List – 3×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 1.75″ x 3.5″ x 71.75″ |
| Bottom Rail | 1 | 1.75″ x 3.5″ x 71.75″ |
| Metal | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 2 | 0.875″ x 3″ x 32.875″ |
| Pickets | 2 | 0.875″ x 3″ x 31.125″ |
| Pickets | 2 | 0.875″ x 3″ x 29.75″ |
| Pickets | 2 | 0.875″ x 3″ x 28.625″ |
| Pickets | 2 | 0.875″ x 3″ x 27.75″ |
| Pickets | 2 | 0.875″ x 3″ x 27.125″ |
| Pickets | 2 | 0.875″ x 3″ x 26.875″ |
| Picket Caps | 14 | 0.875″ x 3″ |

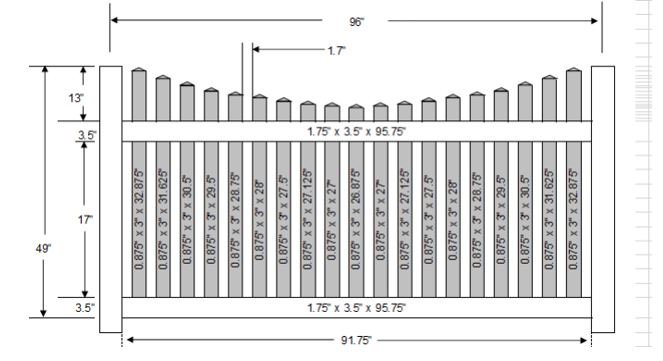

Material List – 3×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 1.75″ x 3.5″ x 95.75″ |
| Bottom Rail | 1 | 1.75″ x 3.5″ 95.75″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 2 | 0.875″ x 3″ x 32.875″ |
| Pickets | 2 | 0.875″ x 3″ x 31.625″ |
| Pickets | 2 | 0.875″ x 3″ x 30.5″ |
| Pickets | 2 | 0.875″ x 3″ x 29.5″ |
| Pickets | 2 | 0.875″ x 3″ x 28.75″ |
| Pickets | 2 | 0.875″ x 3″ x 28″ |
| Pickets | 2 | 0.875″ x 3″ x 27.5″ |
| Pickets | 2 | 0.875″ x 3″ x 27.125″ |
| Pickets | 2 | 0.875″ x 3″ x 27″ |
| Pickets | 1 | 0.875″ x 3″ x 26.875″ |
| Picket Caps | 19 | 0.875″ x 3″ |
Material List – 3’x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 39″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.75″ x 3.5″ x 47.5″ |
| Bottom Rail | 1 | 1.75″ x 3.5″ x 47.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 47″ |
| Pickets | 2 | 0.875″ x 3″ x 32.875″ |
| Pickets | 2 | 0.875″ x 3″ x 31.125″ |
| Pickets | 2 | 0.875″ x 3″ x 29.75″ |
| Pickets | 2 | 0.875″ x 3″ x 28.625″ |
| Picket Caps | 8 | 0.875″ x 3″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
