CAD – Stanley 3′

Stanley 3′ Picket Fence Master CAD

Material List – 3×6 Panel

ITEM QTY DIMENSIONS
Top Rail 1 2″ x 3.5″ x 71.5″
Bottom Rail 1 2″ x 3.5″ x 71.5″
Aluminum 1 1.5″ x 3.25″ x 71.5″
Pickets 2 0.875″ x 1.5″ x 33.375″
Pickets 2 0.875″ x 1.5″ x 32″
Pickets 2 0.875″ x 1.5″ x 30.375″
Pickets 2 0.875″ x 1.5″ x 29.25″
Pickets 2 0.875″ x 1.5″ x 28.375″
Pickets 1 0.875″ x 1.5″ x 27.875″
Pickets 1 0.875″ x 1.5″ x 27.5″
Picket Caps 13 0.875″ x 1.5″

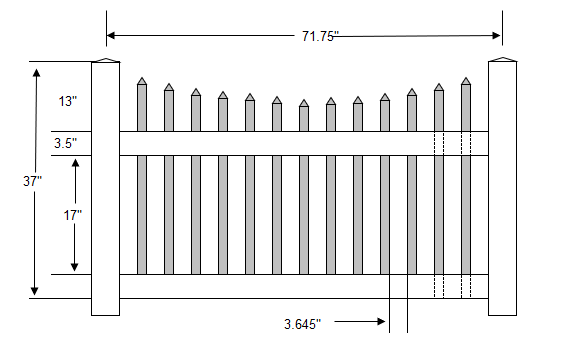

CAD diagram

Material List – 3×8 Panel

ITEM QTY DIMENSIONS
Top Rail 1 2″ x 3.5″ x 95.5″
Bottom Rail 1 2″ x 3.5″ 95.5″
Metal 1 1.5″ x 3.25″ x 95.5″
Pickets 2 0.875″ x 1.5″ x 33.375″
Pickets 2 0.875″ x 1.5″ x 32.125″
Pickets 2 0.875″ x 1.5″ x 31.125″
Pickets 2 0.875″ x 1.5″ x 30.125″
Pickets 2 0.875″ x 1.5″ x 29.375″
Pickets 2 0.875″ x 1.5″ x 28.75″
Pickets 2 0.875″ x 1.5″ x 28.125″
Pickets 2 0.875″ x 1.5″ x 27.75″
Pickets 1 0.875″ x 1.5″ x 27.5″
Picket Caps 17 0.875″ x 1.5″
CAD diagram

Material List – 3′ x 36″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 39″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 35.5″
Bottom Rail 1 2″ x 3.5″ x 35.5″
Metal 1 1.5″ x 3.25″ x 35″
Pickets 2 0.875″ x 1.5″ x 33.375″
Pickets 2 0.875″ x 1.5″ x 32.125″
Pickets 1 0.875″ x 1.5″ x 31.125″
Picket Caps 5 0.875″ x 1.5″
Cross Brace 1 Cross Brace
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram

Material List – 3′ x 48″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 39″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 47.5″
Bottom Rail 1 2″ x 3.5″ x 47.5″
Metal 1 1.5″ x 3.25″ x 47″
Pickets 2 0.875″ x 1.5″ x 33.375″
Pickets 2 0.875″ x 1.5″ x 32.125″
Pickets 2 0.875″ x 1.5″ x 31.125″
Pickets 1 0.875″ x 1.5″ x 30.125″
Picket Caps 7 0.875″ x 1.5″
Cross Brace 1 Cross Brace
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram
