Waldston 4′ Pool Fence Master CAD

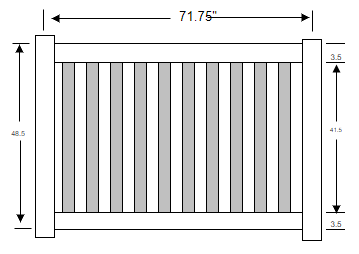

Material List – 4×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Rails | 2 | 2″ x 3.5″ x 71.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 10 | 0.875″ x 3″ x 47″ |

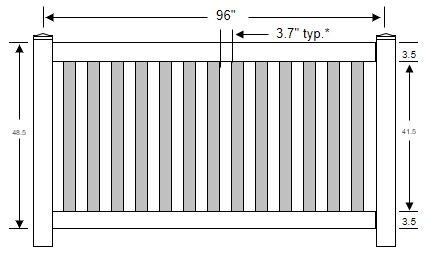

Material List – 4×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Rails | 2 | 2″ x 3.5″ x 95.75″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 13 | 0.875″ x 3″ x 47″ |
Material List – 4′ x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52.5″ |
| Post Cap | 2 | 4″ x 4″ |
| Rails | 1 | 2″ x 3.5″ x 47.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 47″ |
| Pickets | 6 | 0.875″ x 3″ x 47″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

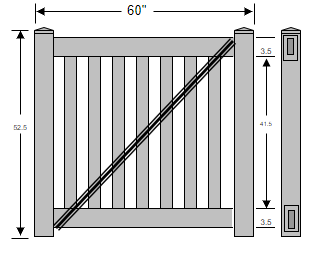

Material List – 4’x 60″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52.5″ |
| Post Cap | 2 | 4″ x 4″ |
| Rails | 1 | 2″ x 3.5″ x 59.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 59″ |
| Pickets | 7 | 0.875″ x 3″ x 47″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
