Weldon 5′ Semi-Privacy Fence Master CAD
Material List – 5×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 71.5″ |
| Mid Rail | 1 | 2 x 3.5″ x 71.5″ |
| Metal | 1 | 1.25″ x 2″ x 71.5″ |
| Picket | 7 | 0.875″ x 3″ x 52″ |
| Picket | 6 | 0.875″ x 6″ x 52″ |
Material List – 5×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 95.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Metal | 1 | 1.25″ x 2″ x 95.5″ |
| Picket | 9 | 0.875″ x 3″ x 52″ |
| Picket | 8 | 0.875″ x 6″ x 52″ |
Material List – 5′ x 35″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 64″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 34.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 34.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 34.5″ |
| Metal | 1 | 1.25″ x 2″ x 34″ |
| Pickets | 3 | 0.875″ x 3″ x 52″ |
| Pickets | 2 | 0.875″ x 6″ x 52″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 5’x 46″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 64″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 45.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 45.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 45.5″ |
| Metal | 1 | 1.25″ x 2″ x 45″ |
| Pickets | 4 | 0.875″ x 3″ x 52″ |
| Pickets | 3 | 0.875″ x 6″ x 52″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

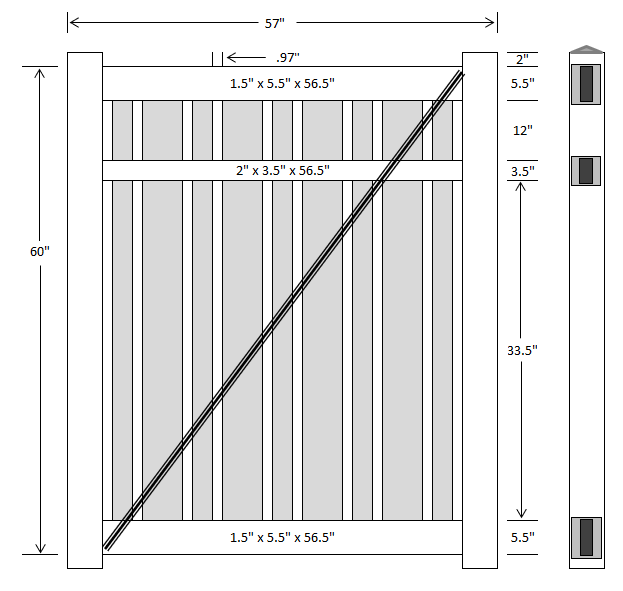

Material List – 5′ x 57″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 64″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 56.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 56.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 56.5″ |
| Metal | 1 | 1.25″ x 2″ x 56″ |
| Pickets | 5 | 0.875″ x 3″ x 52″ |
| Pickets | 4 | 0.875″ x 6″ x 52″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

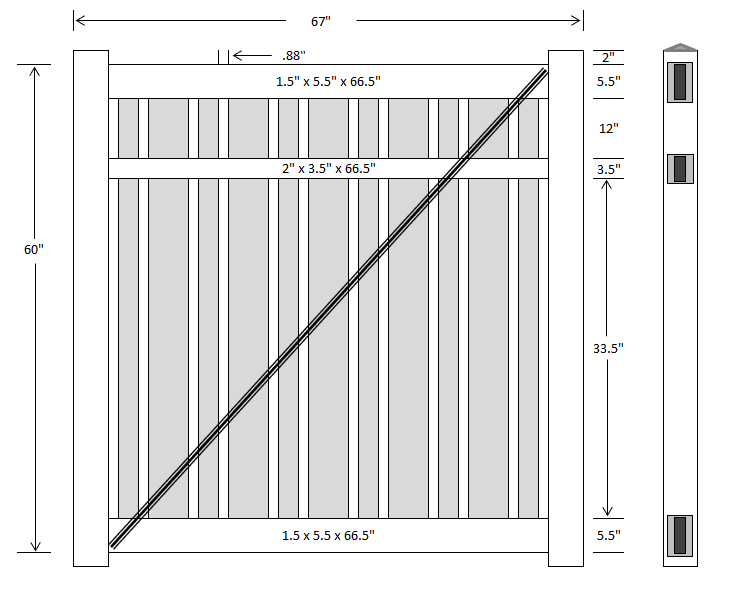

Material List – 5′ x 67″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 64″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 66.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 66.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 66.5″ |
| Metal | 1 | 1.25″ x 2″ x 66″ |
| Pickets | 6 | 0.875″ x 3″ x 52″ |
| Pickets | 5 | 0.875″ x 6″ x 52″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
